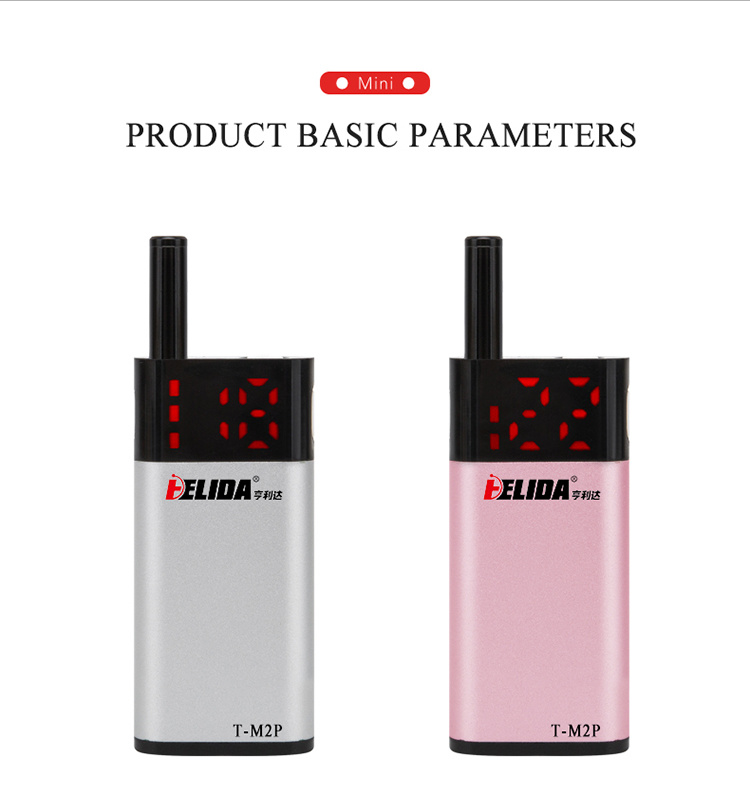

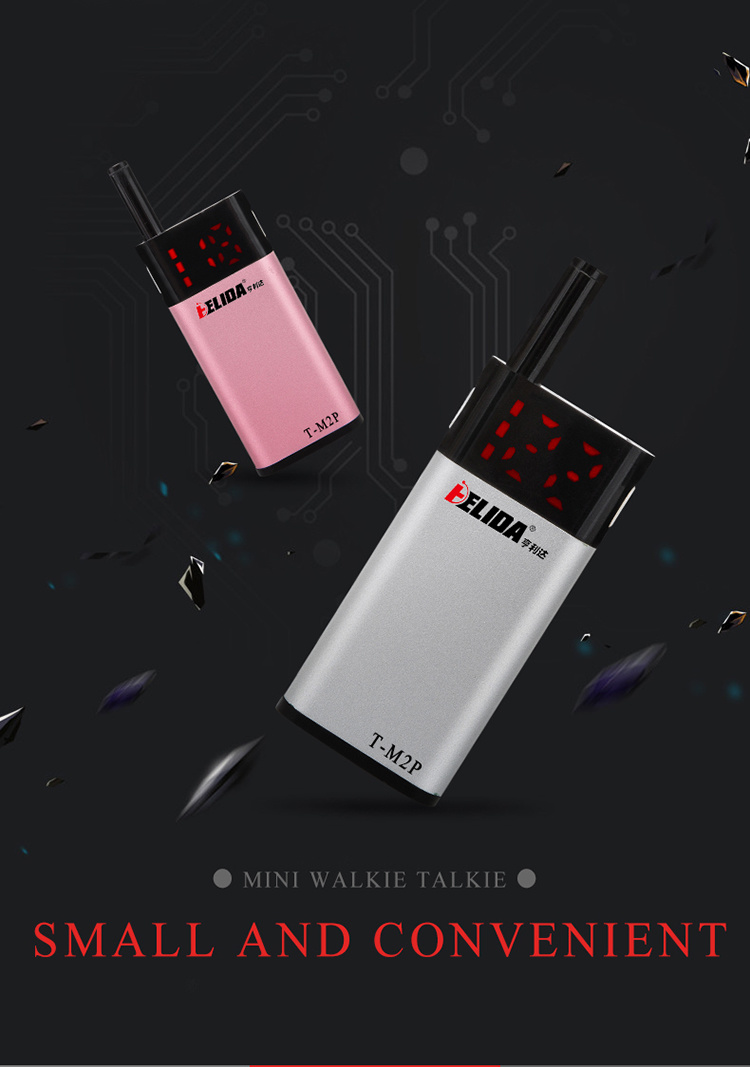

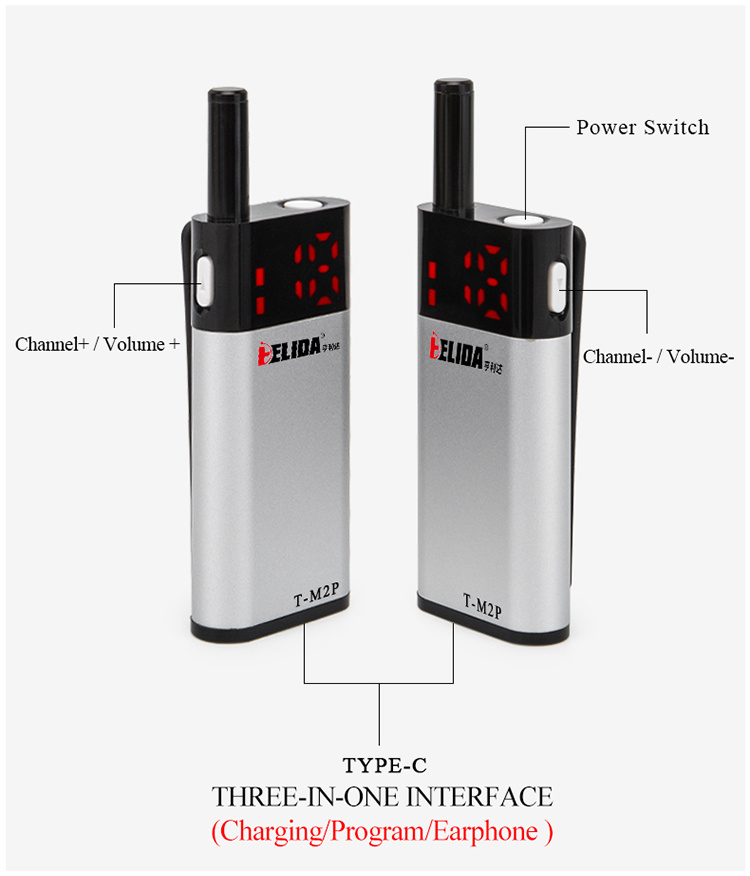

T-M2P Mini analog walkie talkie
Classify:
Mini analog walkie talkie
Keywords:
Mini analog walkie talkie
db
03.
band
stability
uhf
400-520mhz
programmable
06.ctcss
uhf two way radio
walkie-talkies
Walkie - talkie
- Product description
-

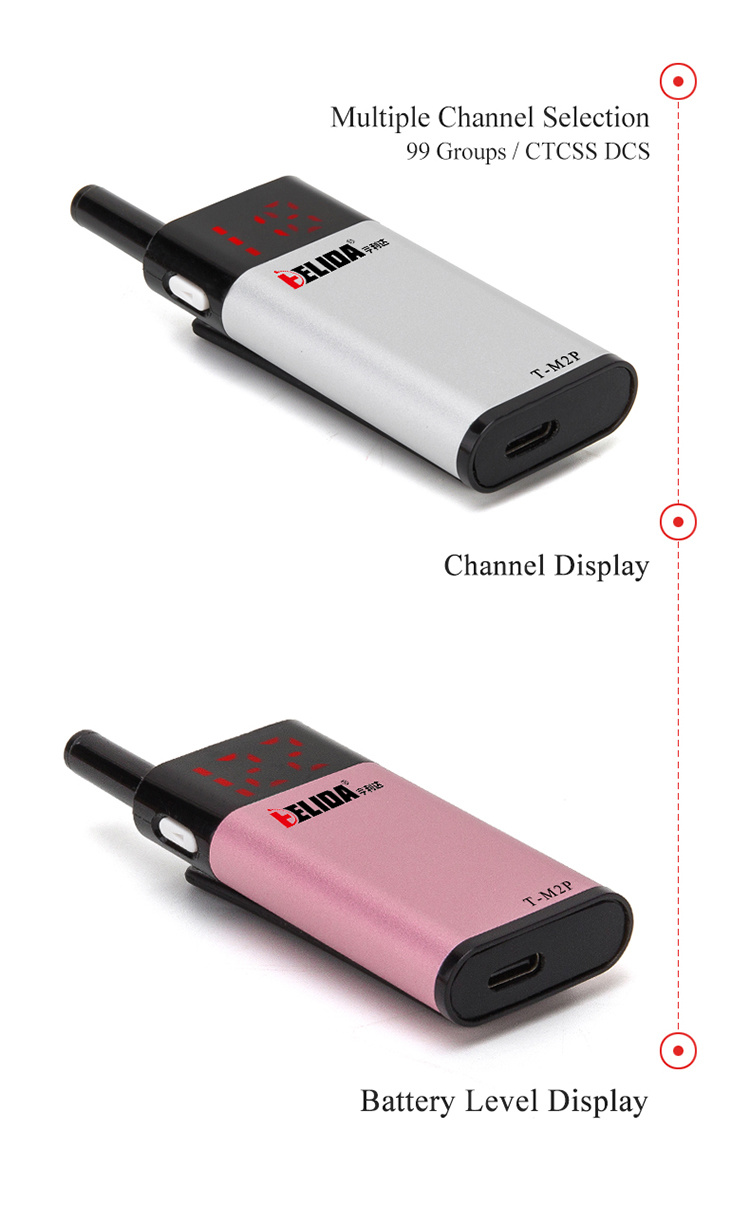

Main Freatures
1.Frequency Band:UHF(400-520MHz)
2.LCD Display
3. Volume Adjustment
4.25 Channels
5.PC Programmable
6.CTCSS,DCS

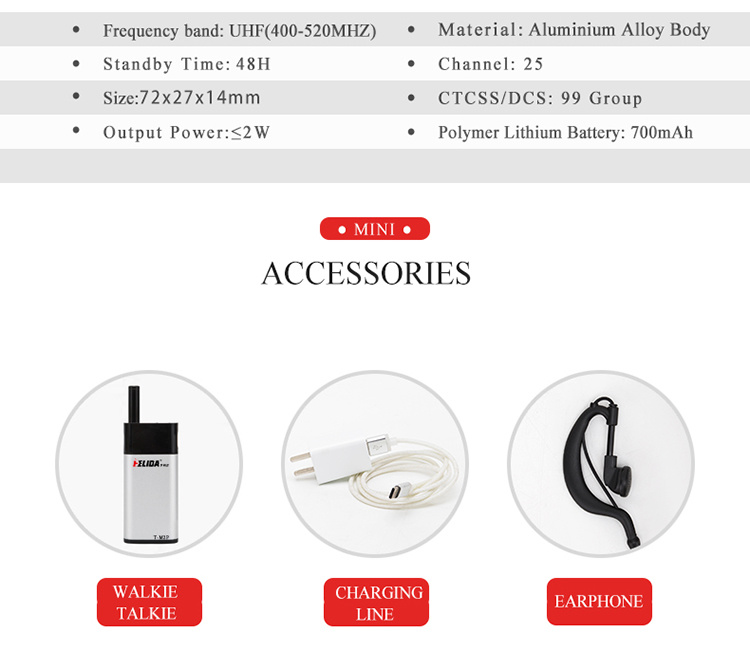

Specification
Working Temperature: -20℃ - 60℃
Battery Capacity: 700mAh
Channel Spacing: 12.5Khz/25Khz
Frequency Stability: ±2.5ppm
Operating Voltage: DC 3.7V
Dimension : 74mm x 27mm x 14mm

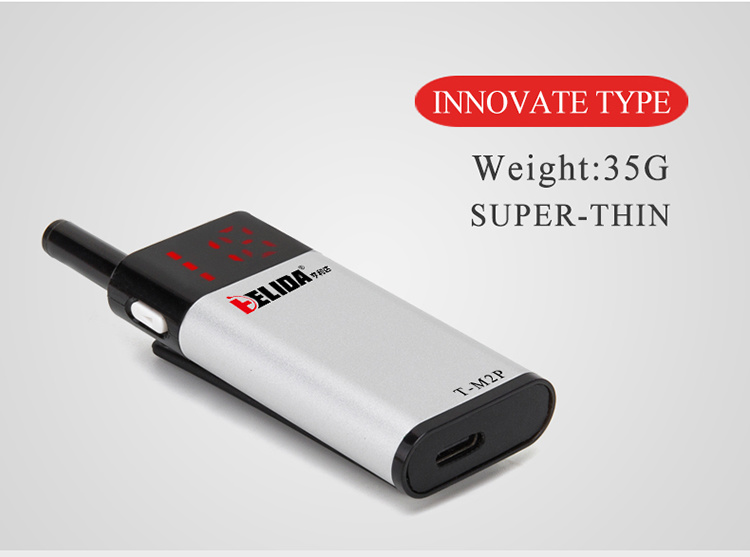

Weight: 35g
Output Power: <2W
Antenna Impedance: 50 Ω
Transmitting Part
Freq Stability:≤±2.5 ppm
Modulation:F3E
Residual FM: ≤ -35 dB
Audio Distortion: ≤ 3%
Receiving Part
Sensitivity : ≤-122 dBm
Adjacent selectivity :≥70 dB
Intermodulation : ≥70 dB immunity
SN ratio :≥48 dB
Audio Distortion : ≤ 3%
Tag list
Mini analog walkie talkie
db
03.
band
stability
uhf
400-520mhz
programmable
06.ctcss
uhf two way radio
walkie-talkies
Walkie - talkie
Product packaging
standard export carton packing, standard export seaworthy parcel
Mode of delivery
According to the needs of customers, small quantity, express delivery; Large quantity, can be transported by sea
Custom Services
Committed to innovation, become the forefront of the radio industry, support OEM / ODM / OBM customization
