5W UHF /VHF Waterproof IP68 analog Walkie Talkie
Classify:
Dual-band walkie-talkie
Keywords:
Dual-band walkie-talkie
5w
talkie
fs-8300
waterproof
Dual Band Ham Walkie Talkie
UHF VHF
walkie
Walkie - talkie
- Product description
-
Main Features

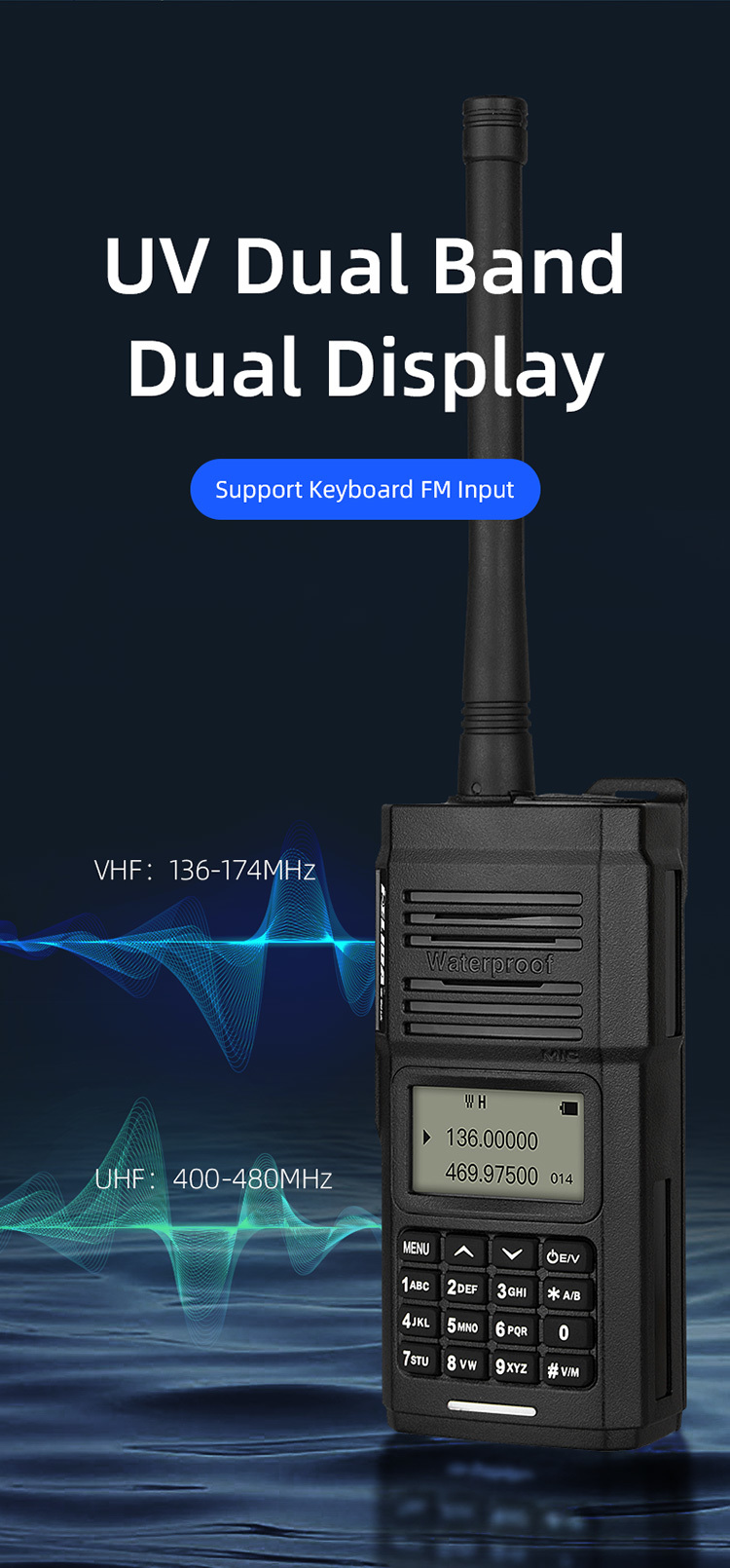

Frequency range: 136-174MHz /400-480MHZ
Number of channel: 128
frequency stability: ±2.5ppm
Operating temperature range: -30?~70?
Operating voltage: DC:7.4V
channel interval: 25/12.5KHz
Antenna impedance: 50?
Dimension: 58×120×34mm
Weight: 200g
Transmit Part
RF power output:5W
Type of modulation: FM
Emission class: 16KØF3E/11KØF3E
Maximum deviation: ?5.0kHz(W)/?2.5kHz(N)
Spurious Emissions : ?65dB
Audio Distortion: ?5%
Transmitter current: ?1.4A
Receiver Part
Receiver sensitivity: -122dBm (at 12dB SINAD)
Intermodulation: 65 dB(W)/60dB(N)
S/N: 43/38dB
Rated Audio Power Output: ?0.5W

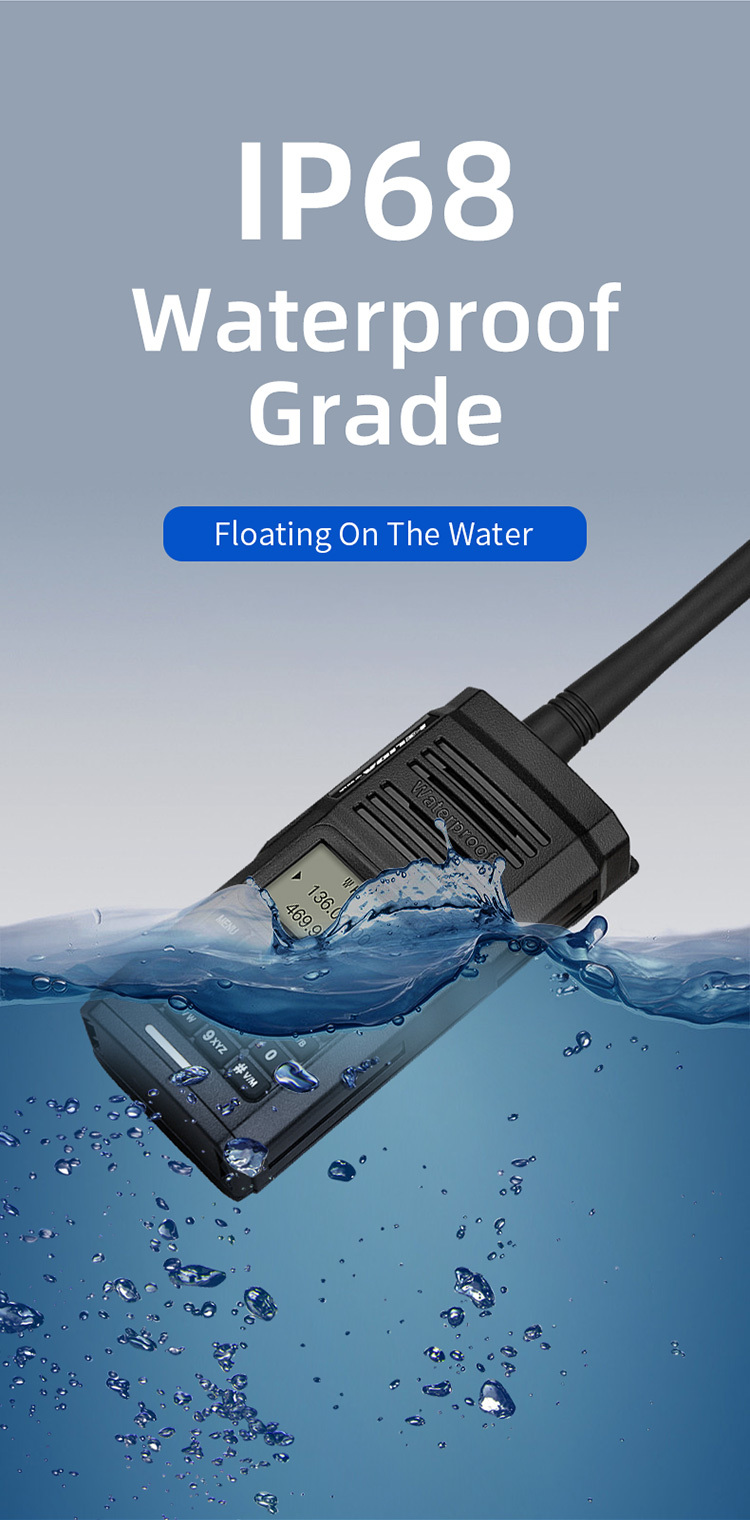

The IP68 walkie talkie is an advanced communication device. It features an IP68 rating, which means it is highly resistant to dust and can withstand immersion in water for a certain period. This makes it extremely durable and suitable for various harsh environments, such as outdoor adventures, construction sites, and marine activities. With reliable communication capabilities, it allows users to stay connected easily and clearly in different challenging situations.
Tag list
Dual-band walkie-talkie
5w
talkie
fs-8300
waterproof
Dual Band Ham Walkie Talkie
UHF VHF
walkie
Walkie - talkie
Product packaging
standard export carton packing, standard export seaworthy parcel
Mode of delivery
According to the needs of customers, small quantity, express delivery; Large quantity, can be transported by sea
Custom Services
Committed to innovation, become the forefront of the radio industry, support OEM / ODM / OBM customization
